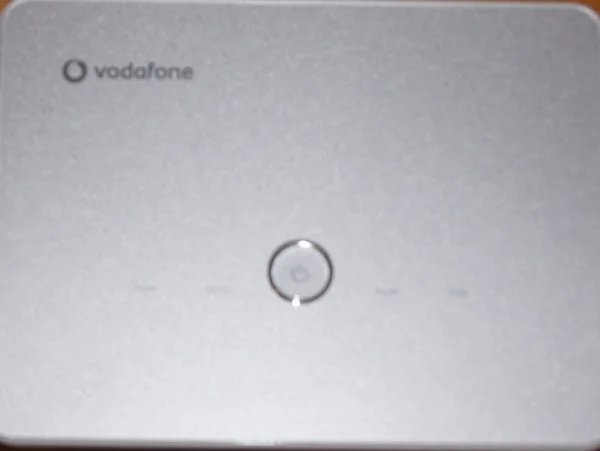

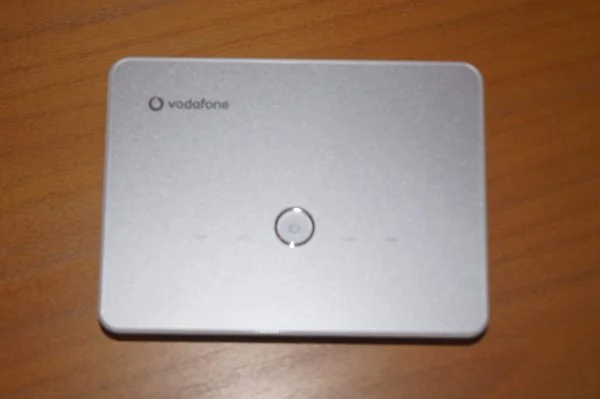

HSDPA Router

Modem 3G + Wireless Router

Supporting two working modes of the wireless gateway and USB modem
Supporting the HSDPA at a rate of 3.6/7.2 Mbit/s for downlink and 384 Kbit/s for uplink
Built-in WCDMA and WLAN high gain antenna, which supports receiving diversity and equalizer
Supporting Web-based management, parameter presetting, and plug-and-play
Ultrathin and artful ID
User-friendly design of indicators
Supporting three placement methods: desktop, desktop inclining, and wall-mounted

Dimensions : 155 mm � 115 mm � 28 mm
Weight : <500 g

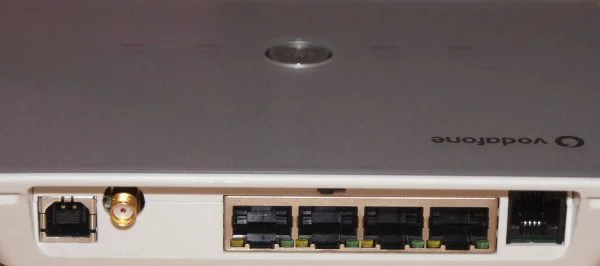

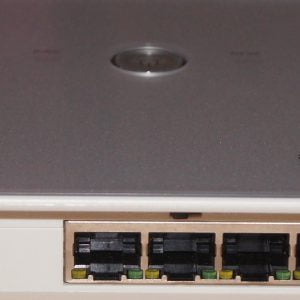

External Interfaces :
Four LAN interfaces for the RJ 45
One telephone interface for the RJ11
WLAN: maximum of 32 users
Power supply interface and USB interface multiplex

Indicators :
One power supply indicator
One signal type indicator
One indicator for WLAN in service
One signal intensity indicator
Four Ethernet interfaces, each Ethernet interface has a LINK/ACTIVE indicator

Antenna : Built-in antenna
UIM : Supports the R-UIM mode
Operating System (OS) :
Windows 2000, Windows XP, Windows Vista, and MAC OS
Band Class :
Supports HSDPA/UMTS 2100 M
Supports GSM/GPRS/EDGE 850/900/1800/1900 MHz

Technical Standards
1. HSDPA/WCDMA: 3GPP R5 2004/06
2. GSM/GPRA/EDGE: 3GPP R99 2003/12
